Consolidated

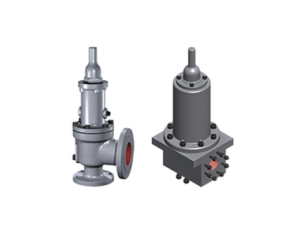

1900 Dual Media Safety Relief Valve With Eductor Advantage
Inlet Sizes
1″ through 12″
Inlet Ratings
ASME Class 150 through 2500, API 6A 10K & 15K
EN 1092-1 PN 10 through PN 400
Outlet Sizes
2″ through 16″
Outlet Ratings
ASME Class 150 and 300
EN 1092-1 PN 10 through PN 40
Orifice Sizes
D through W
Set Pressure Range
4 psig to 10,000 psig
Temperature Range
-450°F to 1500°F
Materials
Cast carbon steel body with stainless steel trim, Other materials available
Standards and Regulations
ASME B & PVC Section VIII & Code Case 2787
API 526
Description
According to API Standard 520 Part 1-Sizing and Selection, 10th Edition, the Dual Media trim design’s proprietary innovation makes it the first spring-loaded safety relief valve in the industry to be “dual certified.” Pressure relief valves that are dual certified—that is, both vapor/gas flow certified and liquid flow certified—are known as dual certified. Dual certification is accomplished without requiring any changes or adaptations to the relief device while changing fluids during flow testing. According to ASME B & PVC Code Case 2787, the 1900 DM trim is dual certified to meet dual media (liquid and gas) capacity stamping and is designed to operate on both liquid and/or gas media with superior blowdown performance. The DM trim from 1900 is perfect for any liquid or gas application, two-phase liquid and gas, flashing or multiple relief case scenarios.
